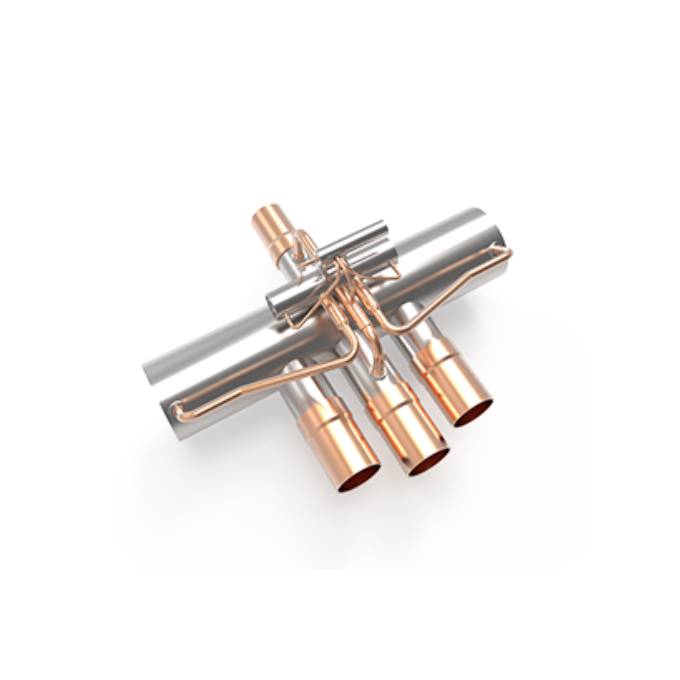

Electromagnetic Four-way Reversing Valve
The electromagnetic four-way reversing valves are applicable for residential air conditioners, VRVs, module units, unit machines, heat pumps and other refrigeration systems. They are used to realize switching between cooling mode and heating mode by changing the flow path of refrigerant.
Description
- Features
- Operation Conditions
- Diversified designs with brass and stainless steel. Applicable for fixed frequency, variable frequency, fixed frequency high temperature and variable frequency high temperature systems.
- High strength, light weight, good vibration resistance, low heat loss and high energy efficiency.
- Connection tubes, valve body and seat are made of stainless steel.
- Reliable stainless steel valve welding, connection tube in a copper sleeve, easy to welding.
- Optional energyefficient coils.
- Applicable Refrigerants: R410A, R32,R134a, R404A, R507, R290, R407C, R22( As for R290, please confirm before placing orders.)
- Maximum Operation Pressure: 4.5 MPa
- Ambient Temperature: -30℃~+55℃
- Relative Humidity:<95%
